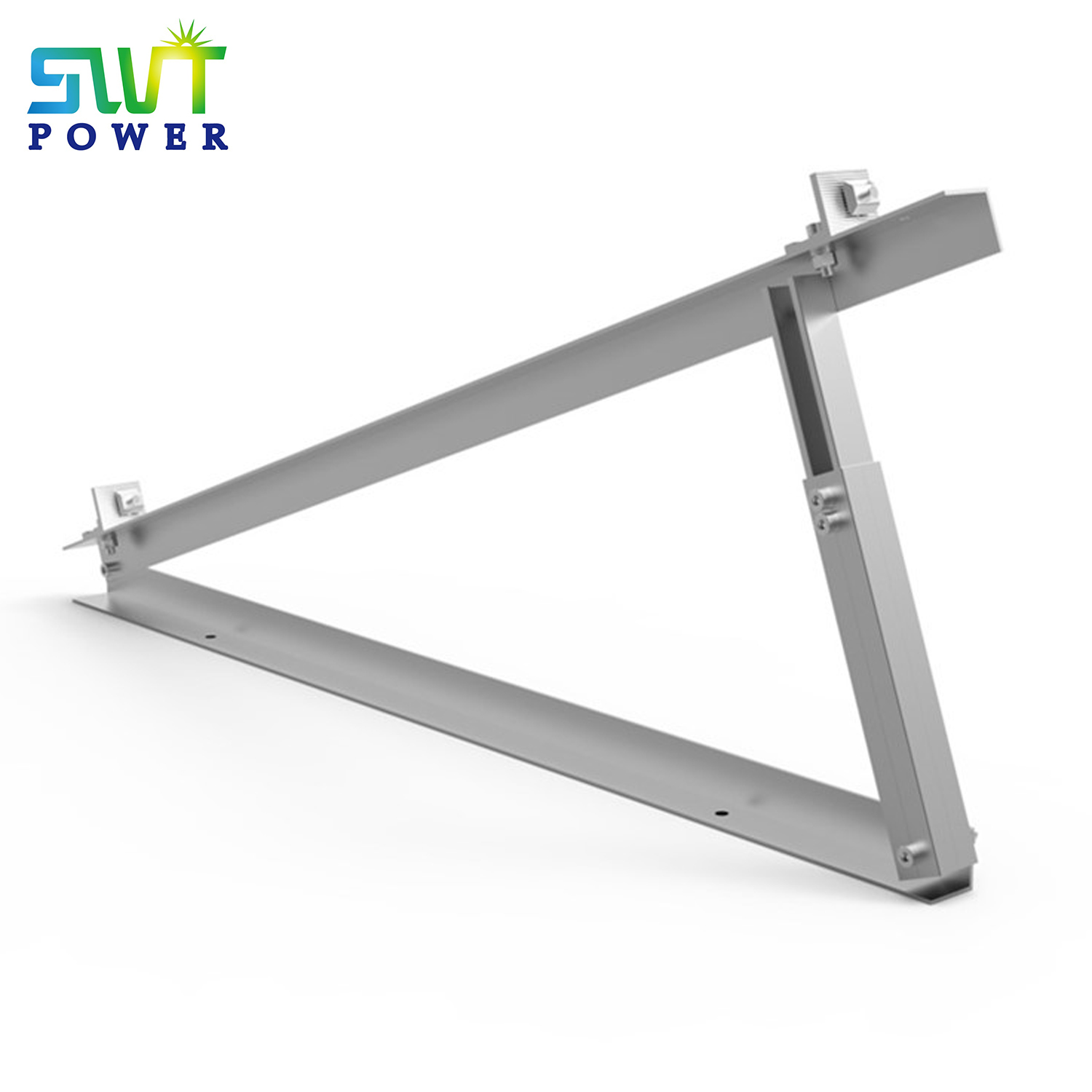

Adjustable Delta triangle for flat roof mounting brackets solar structure solar rail

The adjustable tilt falt roof mounting system will easily fit different flat roofs or open terrain applications, due to its variable tilt angle and footing options for both roof clamp and roof penetration. The system can be used as fixed or adjustable til
Description
Feature:
※ Adjustable Delta triangle mounting system is made of aluminum 6005-T5
※ Application: Flat Roof, Pitched Roof , Open Terrain
※ Tilt angle: 10-15deg, 15-30deg, 30-45deg
※ Building height: Up to 20m
※ Wind speed: Up to 60m/s
※ Module type: Framed, unframed
※ Material: Anodized aluminum 6005 T5, stainless steel 304, 410
※ Standard: AS/NZS1170.2:2011 (R2016), JIS C 8955:2017s
Introduction:
The adjustable tilt falt roof mounting system will easily fit different flat roofs or open terrain applications, due to its variable tilt angle and footing options for both roof clamp and roof penetration. The system can be used as fixed or adjustable tilt, allows for project-specific adjustments and optimize solar output. The innovative design and high pre-assembly eliminate the need for on-site cutting, welding and enable quick  and easy field operation.
There are three adjustable scope optional
10-15deg
15-30deg
30-45deg
